Calibration pipeline report
Observation summary
Capture block: example
Stream: sdp_l0
- Start time: 1970-01-01 12:00:00
- Int time: 8.001516859813089
- Channels: 1024
- Antennas: 60
- Antenna list: m000, m001, m002, m003, m004, m005, m006, m007, m008, m009, m010, m011, m012, m013, m014, m015, m016, m017, m018, m019, m020, m021, m022, m024, m026, m027, m028, m029, m030, m031, m032, m033, m034, m035, m036, m038, m039, m040, m041, m042, m044, m045, m046, m047, m048, m049, m050, m051, m052, m053, m054, m055, m056, m057, m058, m059, m060, m061, m062, m063
Source list:
- J1939-6342
- J1935+2154
- J2011-0644
RFI and Flagging summary
Percentage of time data is flagged
Percentage of baselines flagged per scan
Calibration product SNR summary
Median and IQR of solution SNRs across antennas
Number of antennas with SNR < 10 (or NaN) solutions:
Flux Calibration
Frequency range of quoted flux: 1326.63 - 1367.59 MHz
| Calibrator | Measured Flux | Model Flux |
|---|---|---|
| J2011-0644 | 2.628 +/- 0.008 Jy | |
| J1939-6342 | 15.006 Jy |
Calibration product K

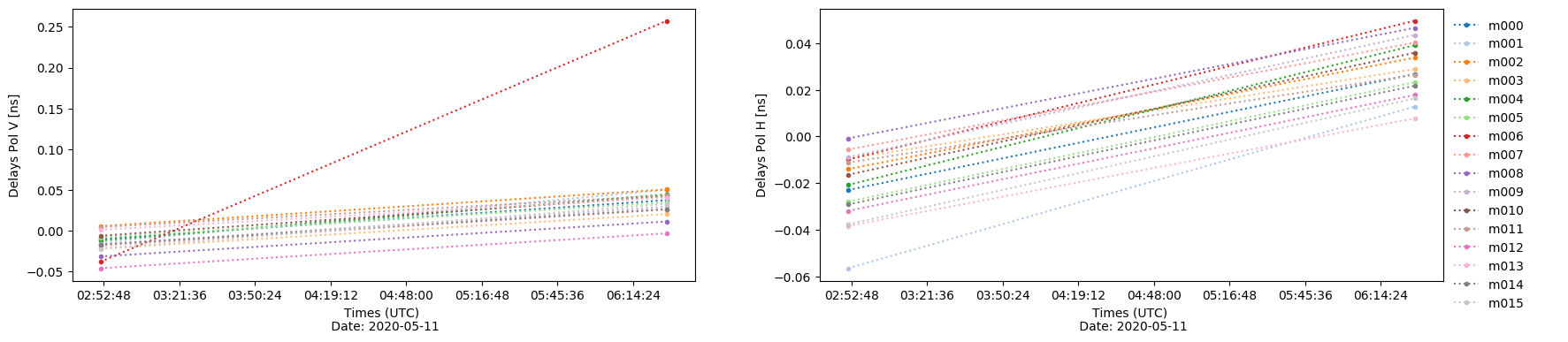

Delay calibration solutions (ns)
POL V
| Ant | 11 02:51:33 | 11 06:27:19 |
|---|---|---|
| m000 | -0.010 | 0.038 |
| m001 | -0.014 | 0.050 |
| m002 | 0.006 | 0.051 |
| m003 | -0.022 | 0.020 |
| m004 | -0.012 | 0.045 |
| m005 | -0.008 | 0.035 |
| m006 | -0.038 | 0.257 |
| m007 | -0.018 | 0.026 |
| m008 | -0.031 | 0.011 |
| m009 | -0.017 | 0.030 |
| m010 | -0.006 | 0.042 |
| m011 | 0.005 | 0.043 |
| m012 | -0.046 | -0.003 |
| m013 | 0.001 | 0.041 |
| m014 | -0.017 | 0.027 |
| m015 | -0.022 | 0.033 |
| m016 | -0.021 | 0.039 |
| m017 | -0.033 | 0.024 |
| m018 | -0.047 | -0.009 |
| m019 | -0.016 | 0.037 |
| m020 | 0.015 | 0.066 |
| m021 | -0.007 | 0.041 |
| m022 | -0.036 | 0.038 |
| m024 | -0.030 | 0.048 |
| m026 | -0.003 | 0.062 |
| m027 | 0.015 | 0.061 |
| m028 | -0.012 | 0.045 |
| m029 | -0.005 | 0.044 |
| m030 | -0.011 | 0.043 |
| m031 | 0.007 | 0.048 |
| m032 | -0.007 | 0.050 |
| m033 | -0.001 | 0.054 |
| m034 | -0.006 | 0.044 |
| m035 | -0.023 | 0.020 |
| m036 | -0.024 | 0.029 |
| m038 | -0.000 | 0.031 |
| m039 | -0.023 | 0.027 |
| m040 | -0.036 | 0.015 |
| m041 | -0.016 | 0.027 |
| m042 | -0.014 | 0.038 |
| m044 | -0.030 | 0.046 |
| m045 | 0.001 | 0.074 |
| m046 | -0.014 | 0.063 |
| m047 | -0.004 | 0.046 |
| m048 | 0.003 | 0.101 |
| m049 | -0.009 | 0.055 |
| m050 | -0.016 | 0.034 |
| m051 | -0.031 | 0.028 |
| m052 | 0.009 | 0.043 |
| m053 | 0.003 | 0.016 |
| m054 | -0.038 | 0.004 |
| m055 | -0.018 | 0.029 |
| m056 | -0.014 | 0.046 |
| m057 | 0.005 | 0.100 |
| m058 | -0.007 | 0.067 |
| m059 | 0.005 | 0.060 |
| m060, refant | 0.000 | -0.000 |
| m061 | -0.007 | 0.005 |
| m062 | -0.009 | 0.010 |
| m063 | -0.015 | 0.027 |
POL H
| Ant | 11 02:51:33 | 11 06:27:19 |
|---|---|---|
| m000 | -0.023 | 0.027 |
| m001 | -0.056 | 0.013 |
| m002 | -0.014 | 0.034 |
| m003 | -0.010 | 0.029 |
| m004 | -0.021 | 0.039 |
| m005 | -0.028 | 0.023 |
| m006 | -0.010 | 0.050 |
| m007 | -0.006 | 0.040 |
| m008 | -0.001 | 0.047 |
| m009 | -0.009 | 0.043 |
| m010 | -0.016 | 0.036 |
| m011 | -0.011 | 0.026 |
| m012 | -0.032 | 0.018 |
| m013 | -0.038 | 0.008 |
| m014 | -0.029 | 0.022 |
| m015 | -0.038 | 0.016 |
| m016 | -0.030 | 0.029 |
| m017 | -0.035 | 0.034 |
| m018 | -0.018 | 0.025 |
| m019 | -0.049 | 0.011 |
| m020 | -0.007 | 0.048 |
| m021 | -0.005 | 0.049 |
| m022 | -0.017 | 0.063 |
| m024 | -0.018 | 0.062 |
| m026 | 0.002 | 0.066 |
| m027 | 0.006 | 0.060 |
| m028 | -0.017 | 0.033 |
| m029 | -0.009 | 0.048 |
| m030 | -0.025 | 0.032 |
| m031 | -0.028 | 0.034 |
| m032 | -0.006 | 0.055 |
| m033 | -0.010 | 0.057 |
| m034 | -0.018 | 0.036 |
| m035 | -0.020 | 0.021 |
| m036 | -0.026 | 0.024 |
| m038 | -0.012 | 0.020 |
| m039 | -0.025 | 0.021 |
| m040 | -0.015 | 0.036 |
| m041 | -0.015 | 0.032 |
| m042 | -0.011 | 0.044 |
| m044 | -0.008 | 0.062 |
| m045 | -0.018 | 0.055 |
| m046 | -0.037 | 0.065 |
| m047 | -0.007 | 0.050 |
| m048 | -0.017 | 0.101 |
| m049 | -0.013 | 0.067 |
| m050 | -0.025 | 0.038 |
| m051 | -0.012 | 0.052 |
| m052 | -0.015 | 0.024 |
| m053 | -0.017 | 0.001 |
| m054 | -0.023 | 0.020 |
| m055 | -0.012 | 0.032 |
| m056 | -0.031 | 0.034 |
| m057 | 0.001 | 0.098 |
| m058 | -0.030 | 0.046 |
| m059 | 0.002 | 0.075 |
| m060, refant | 0.000 | -0.000 |
| m061 | -0.013 | 0.006 |
| m062 | -0.001 | 0.026 |
| m063 | -0.021 | 0.025 |
Calibration product KCROSS
Cross polarisation delay calibration solutions (ns)
| Ant | 11 06:39:03 |
|---|---|
| KCROSS | -22.915 |
Calibration product B
Bandpass calibration solutions
Time: 2020-05-11 02:51:33
Antennas flagged for all channels:
- V: None
- H: None
Time: 2020-05-11 06:27:19
Antennas flagged for all channels:
- V: None
- H: None
Calibration product G
Gain calibration solutions
Antennas flagged for all times:
- V: None
- H: None
Calibrator Summary Plots
Corrected Amp and Phase vs Frequency, delay and bandpass calibrators
Baselines to the reference antenna : m060
Time : 2020-05-11 02:51:33
Time : 2020-05-11 06:27:19

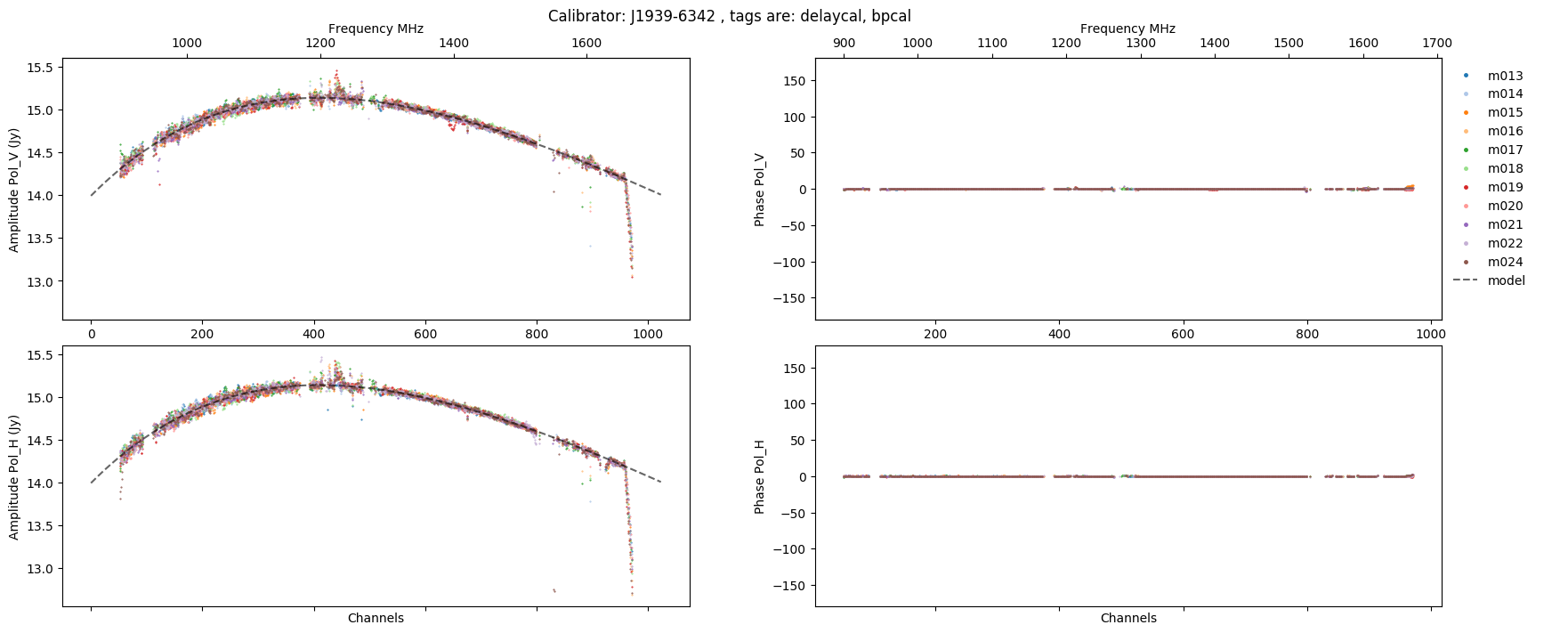

Corrected Amp and Phase vs Frequency, all gain-calibrated calibrators
All baselines, averaged per antenna

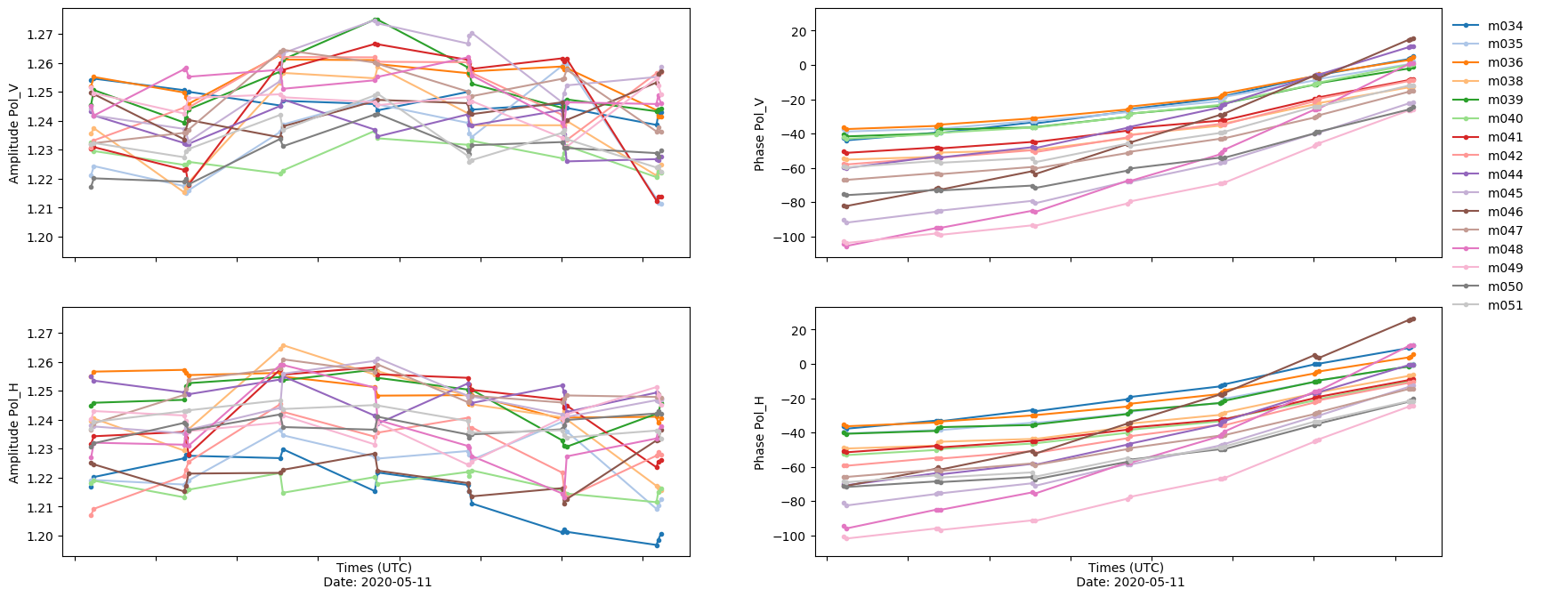

Corrected Phase vs Time, all gain-calibrated calibrators
All baselines, averaged per antenna

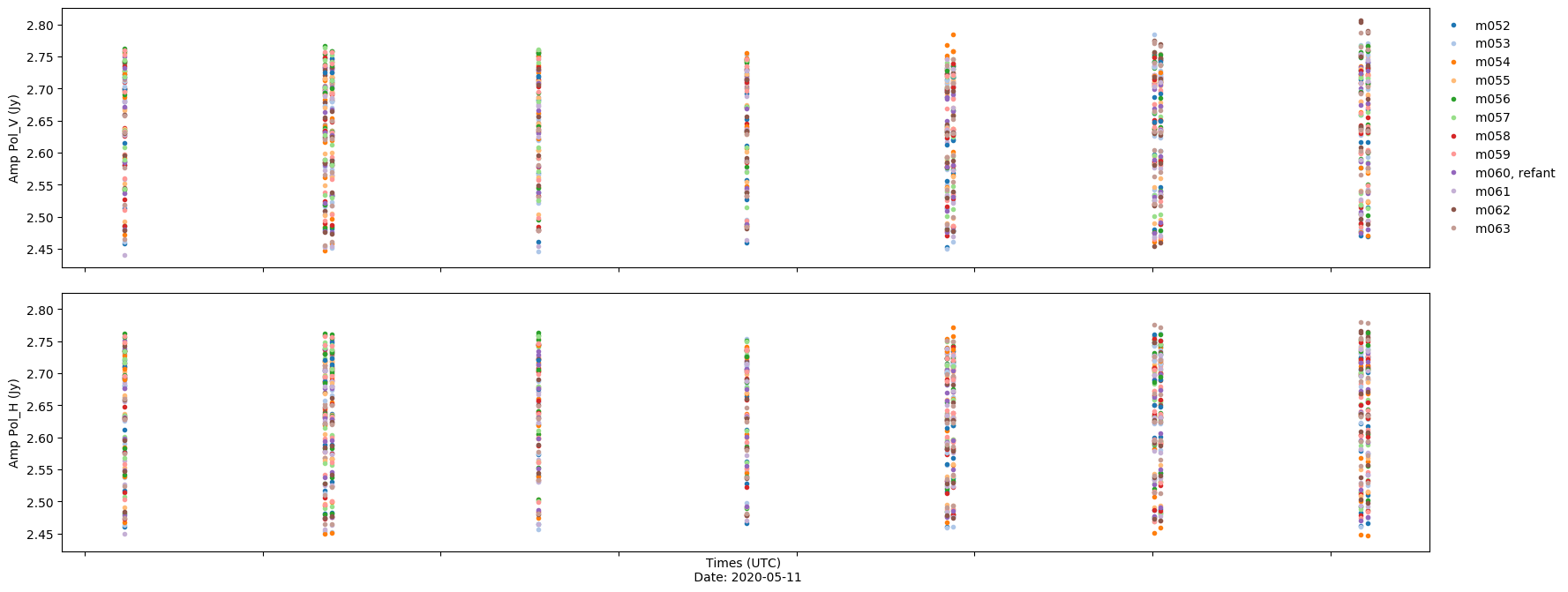

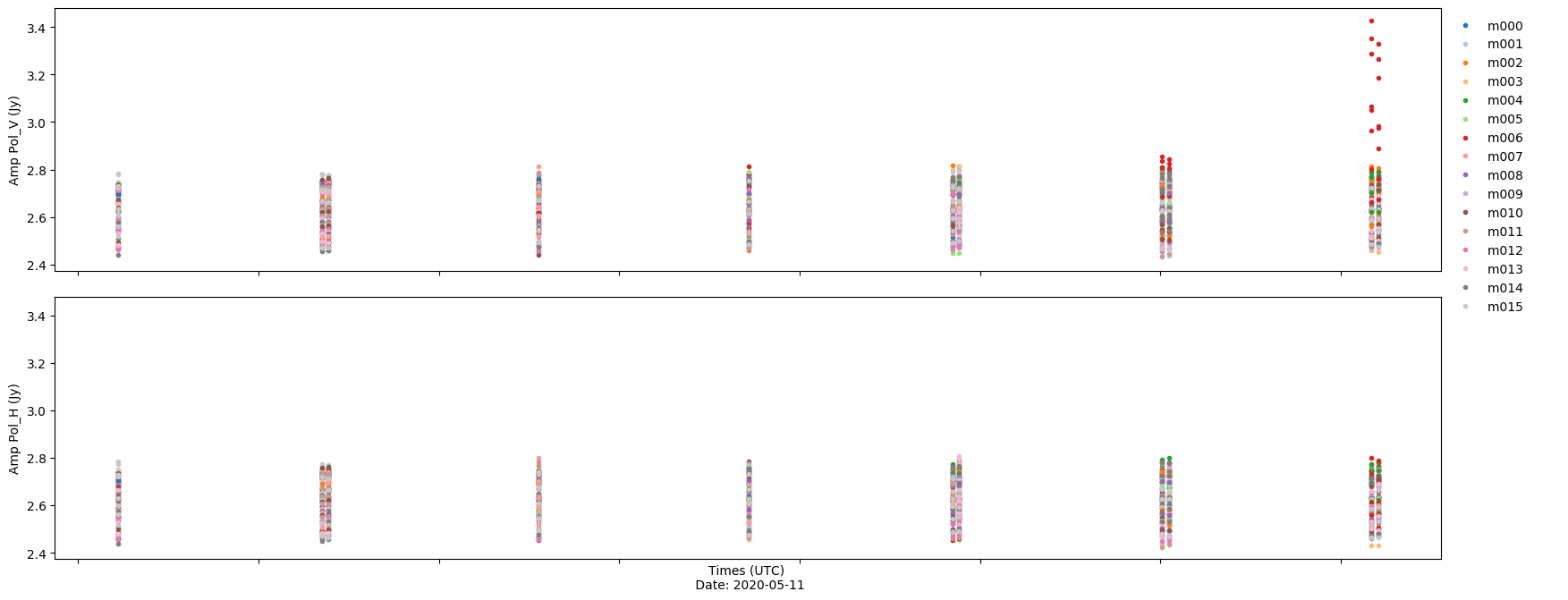

Corrected Amp vs Time, all gain-calibrated calibrators
All baselines, averaged per antenna
Amp and Phase vs UVdist, all gain-calibrated calibrators
All baselines
Calibrated Target Fields

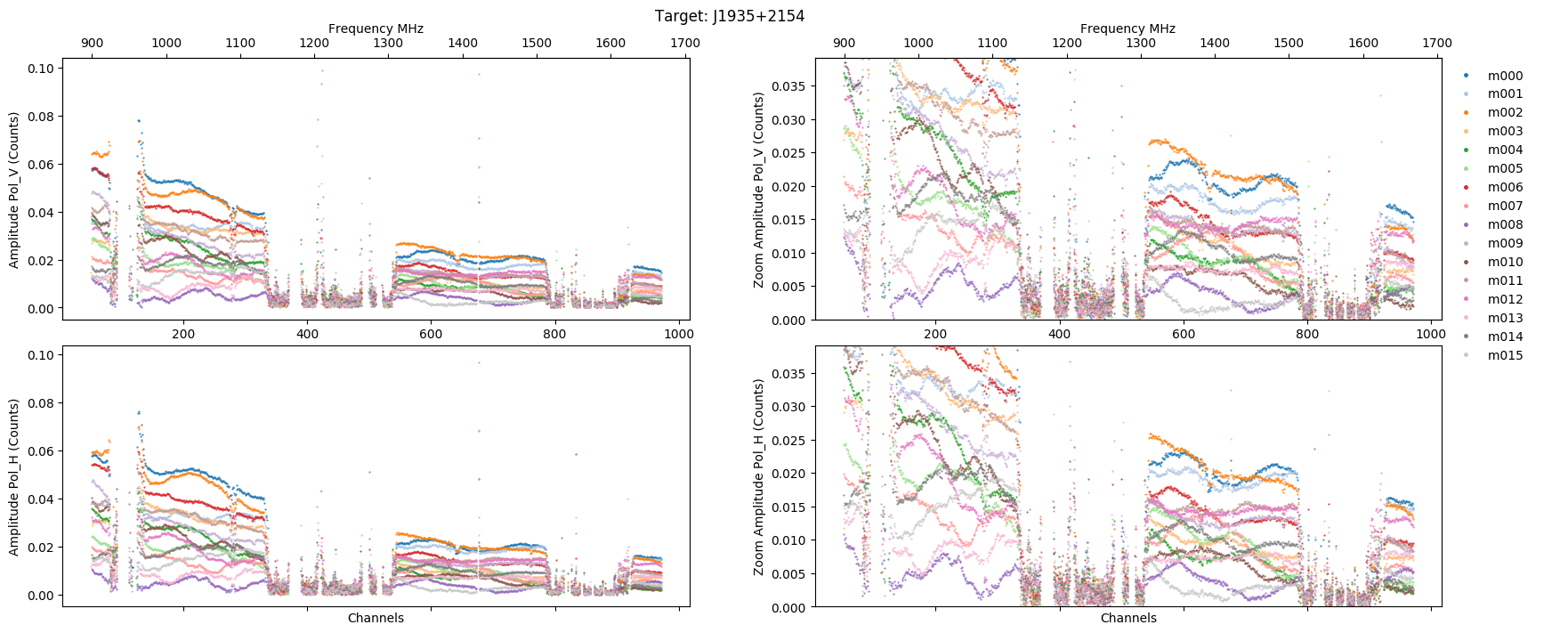

Corrected Amp vs Frequency, all target fields
All baselines, averaged per antenna
Amp vs UVdist, all target fields
All baselines
